Lecture 7 of 10

Simulation of Telephone System

Problem 1:

The system has a number of telephones (8 are shown) connected to a switchboard by lines. The switchboard has a number of links which can be used to connect any two lines, subject to the condition is that only one connection at a time can be made to each link. They established maximum 3 links.

Process a given number of calls and determine what proportions are successfully

Completed
Blocked or
Found to be busy

The system is lost call system

A call is lost, if the call party is engaged, then it is a busy call
A call may be lost if no link is available, it is blocked call

Simulation of Telephone System, figure 1

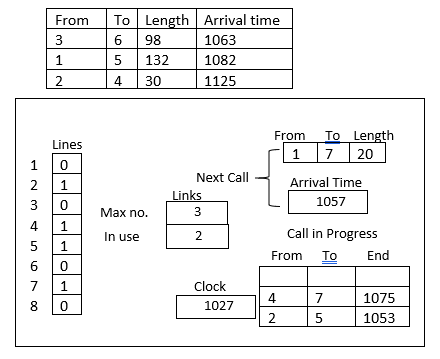

Simulation of Telephone System, figure 2

Simulation of Telephone System, figure 3

Solution:

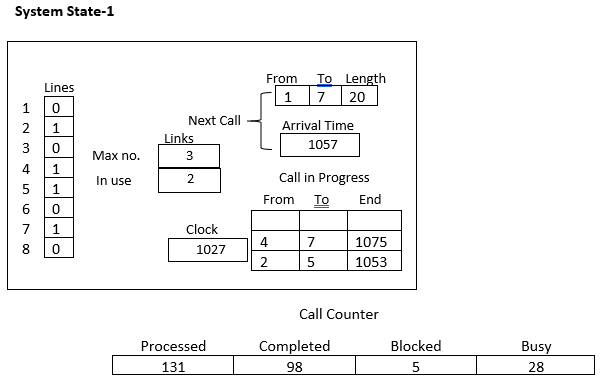

Simulation of Telephone System, figure 4

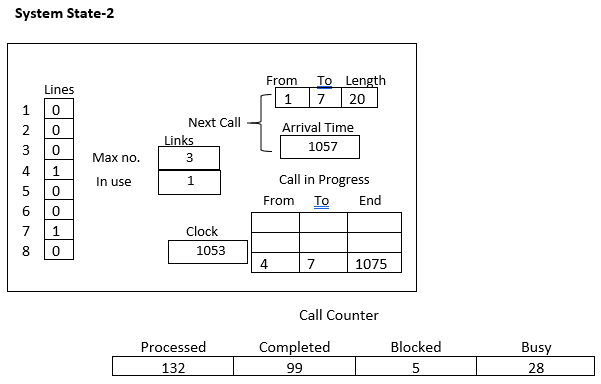

Simulation of Telephone System, figure 5

Simulation of Telephone System, figure 6

Simulation of Telephone System, figure 7

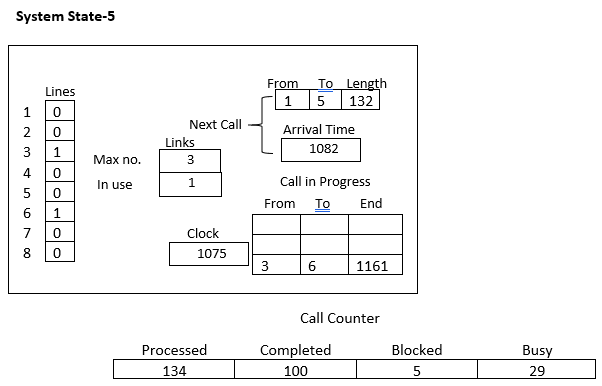

Simulation of Telephone System, figure 8

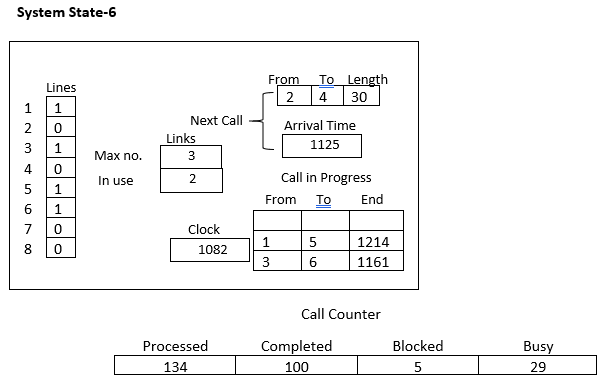

Simulation of Telephone System, figure 9

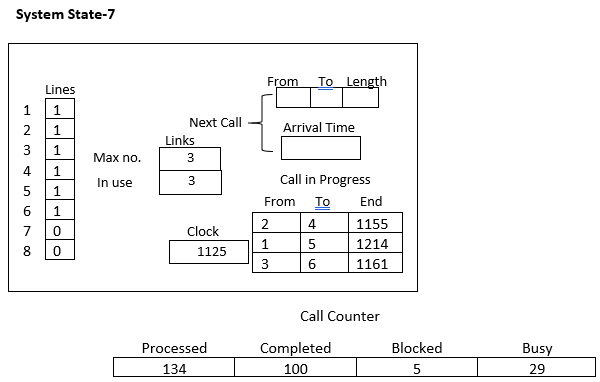

Simulation of Telephone System, figure 10

Simulation of Telephone System, figure 11

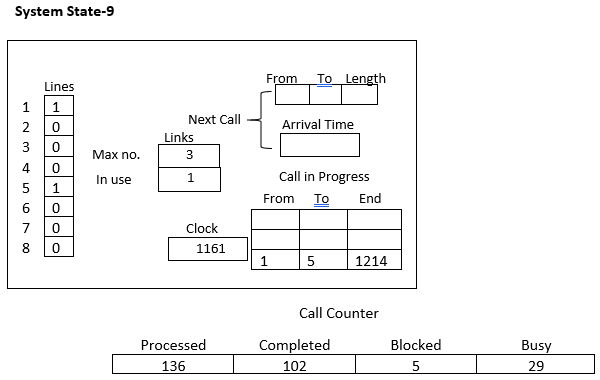

Simulation of Telephone System, figure 12

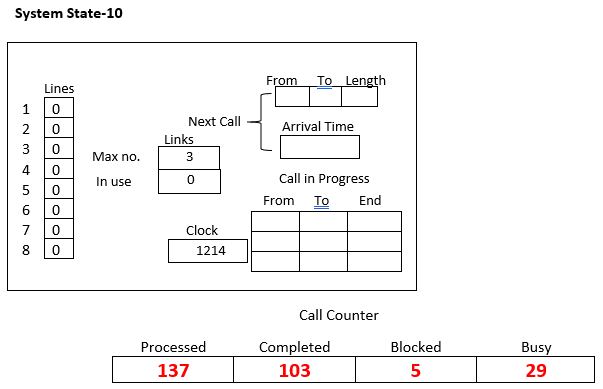

Simulation of Telephone System, figure 13

Problem 2:

The system has a number of telephones (8 are shown) connected to a switchboard by lines. The switchboard has a number of links which can be used to connect any two lines, subject to the condition is that only one connection at a time can be made to each link. They established maximum 3 links.

Process a given number of calls and determine what proportions are successfully

Completed
Blocked or
Found to be busy

The system is lost call system

A call is lost, if the call party is engaged, then it is a busy call
A call may be lost if no link is available, it is blocked call

Simulation of Telephone System, figure 14

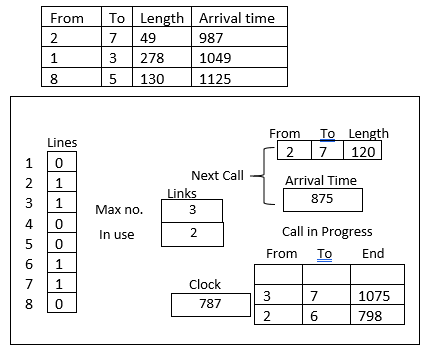

Simulation of Telephone System, figure 15

Simulation of Telephone System, figure 16
