Lecture 4 of 10

Queuing System

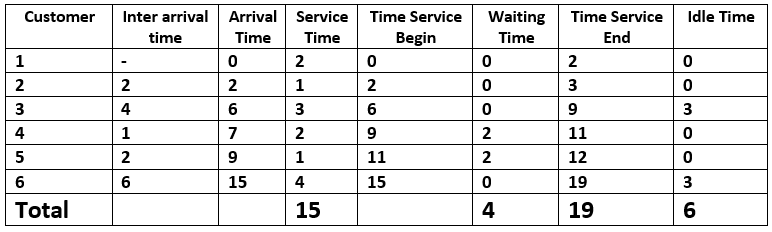

Problem: A banking queuing system in a cash counter have several data is given below:

Queuing System, figure 1

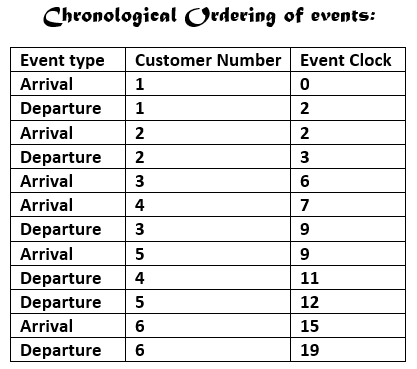

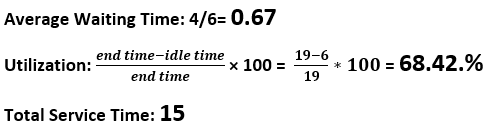

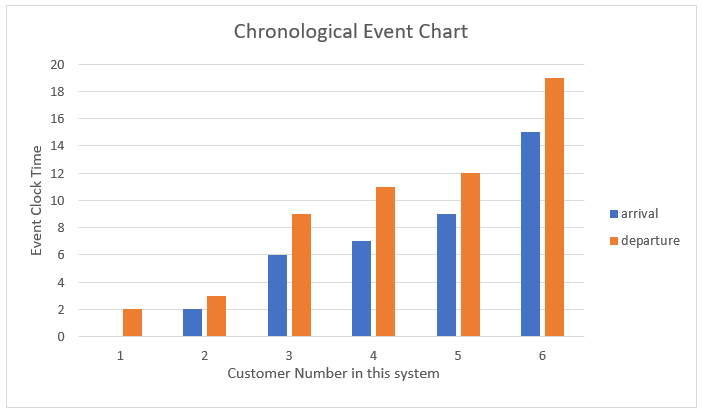

Calculate the Average waiting time, Utilization and Service time of this system. Also calculate the chronological ordering of events with graph.

Queuing System, figure 2

Queuing System, figure 3

Queuing System, figure 4

Queuing System, figure 5

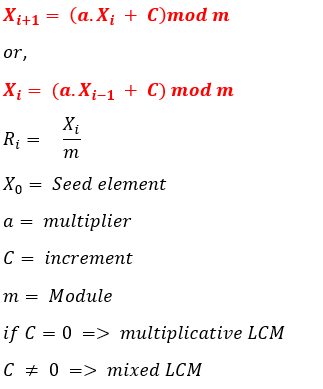

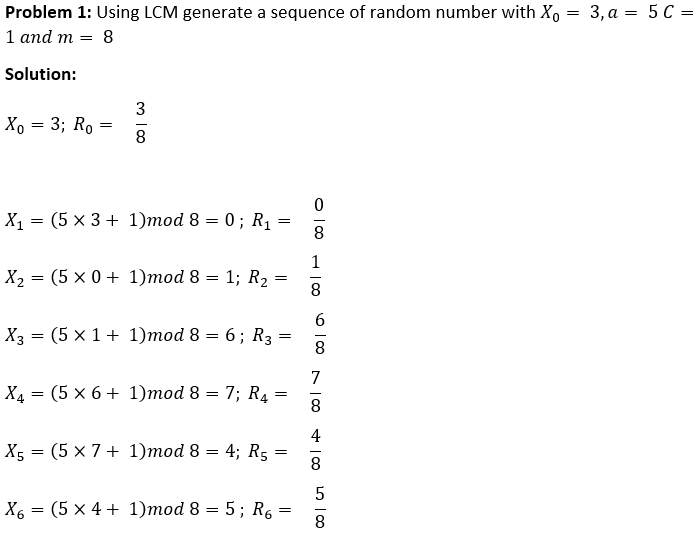

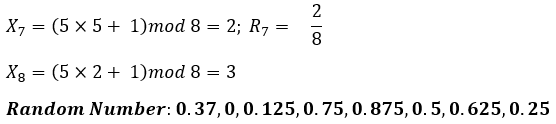

LCM (Linear Congruential Method)

Queuing System, figure 6

Queuing System, figure 7

Queuing System, figure 8

Queuing System, figure 9
